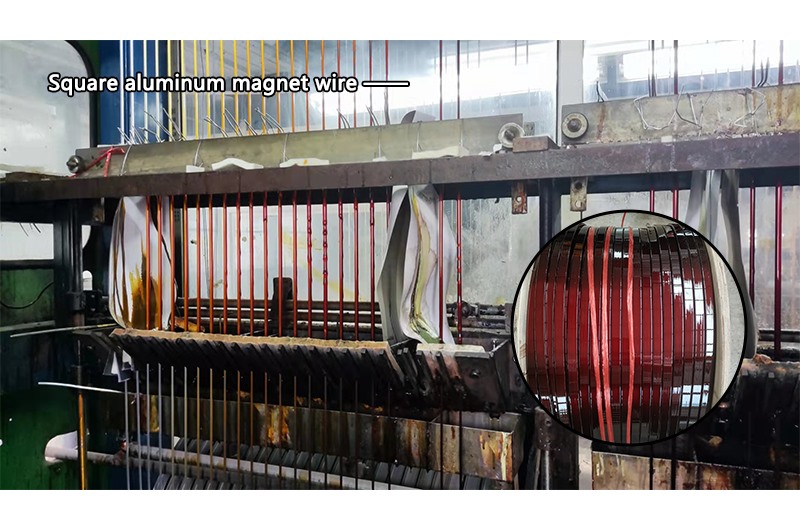

Square aluminum magnet wire consists of a rectangular conductor with an R angle and an outer coated insulating layer. It is described by parameters such as conductor narrow boundary value, conductor wide boundary value, paint film heat resistance grade and thickness type. Compared with the round wire, the flat enameled wire can greatly improve the slot full rate, which can reach 96%.



Square aluminum magnet wire is widely used for transformers, generators, refrigeration systems, C-class generators, UPS power supplies, electronic transformers

Conductor	Copper and Aluminum
Dimension	Copper	Thickness (Width)：0.45 ~6.0mm
	Aluminum	Thickness (Width)：1.2~8.0mm
Thermal Class	180(Class H)；200(Class C)；220(Class  c+)
Insulation type	EIW-180: Class 180 Polyester imide enameled wire
	EI/AIW:Class 200 Polyester overcoated with Polyester imide enameled wire
	PIW:Class 220 polyimide enameled rectangular copper wire
Standard	IEC60317;GB/T 7095; Or according to customers' requirements
Package	30~150kg wooden spool
Properties	Heat resistance, refrigerants, Good radiation-resistant
